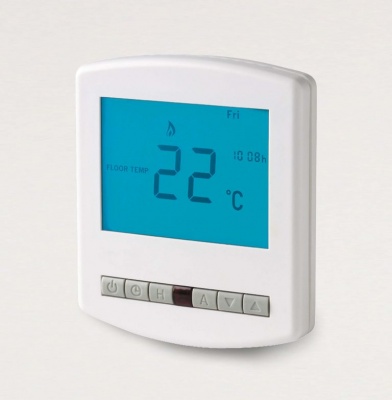

Exclusive to Floor Heating Systems Ltd, The FH-01 Underfloor heating thermostat has been designed specifically with electric under floor heating in mind, able to control up to 16amp.
Colour options are available at additional costs.
- Floor sensor only. Ideal when you only want to control the floor surface temperature (conservatories for example).
- Air and Floor. The thermostat controls the air temperature whilst using the floor sensor to prevent overheating of the floor system.
- Remote Air and Floor. Ideal for remote control of the air and floor temperature (bathrooms for example).
- Floor sensor included
- Supply: 230v AC
- Dimensions: 98x85x13mm
- Weight: 195g
- 5/2 day or 7 day programming (selectable in software)
- Temperature Hold Feature
- Holiday Feature
- °C / °F selectable
- Self Learning Optimum Start on 1st and 3rd level
- Keylock Facility
- Frost protection with adjustable temperature setting
- Remote Control Option (RM1)
- 16A Switch rating (3,680 watts)
- Blue Backlight (turns off after 30 seconds)
** The user can enter a day, night and vacation temperature.
Probe Installation: We always suggest installing the probe into a conduit so that it can be retrieved if required.
The thermostat is energy efficient providing full programming controle, it can handle a 16amp load, yet is incredibly easy to use with full 7-day 24 hour timer.
We believe that this is the best and most reliable floor heating thermostat currently available on the market.
